Hitachi Air Conditioning Wall Mounted Summit Performance RAK-RPD Sales And Spare Parts

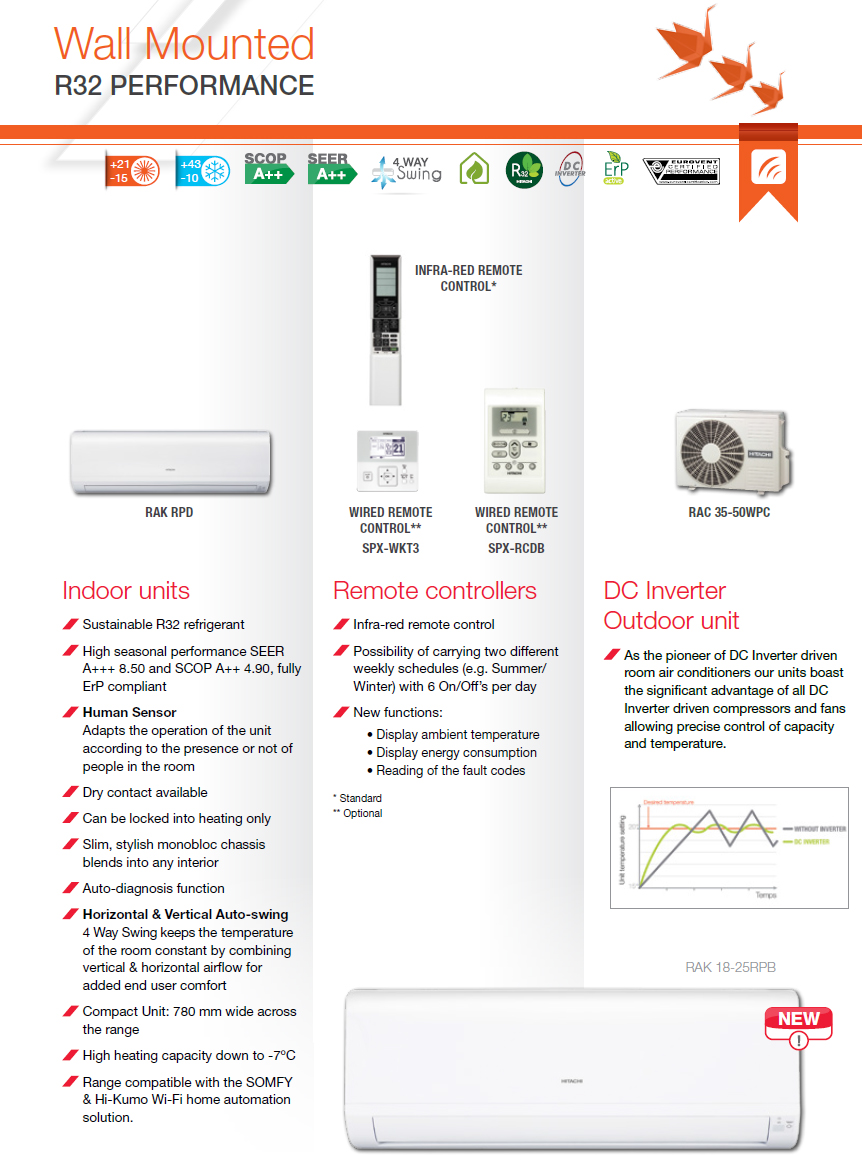

Hitachi Air Conditioning Wall Mounted Summit Performance RAK-RPD data



NOW IN R32 REFRIGERANT





A++ Energy Rated Product

Includes:


1 x RAK-RPD R32 Indoor wall unit
1 x RAC-WPD R32 Outdoor unit
1 x RAR-6N1 Ir remote control



The New Performance R32 Hitachi air conditioning RAK wall mounted range are highly economical and environmentally friendly. Using the latest compressor and inverter technology keeps power consumption to a minimal, but at the same time providing powerful cooling and heating. All Hitachi’s air conditioning units offer high seasonal efficiencies, with models in the Performance range achieving high seasonal performance SCOP A++ 4.6 and SEER A++ 7.6. ​​The compact dimensions of the Performance model (280 x 780 x 218) are common across the entire range and allow for easier integration. Low Noise Levels


Enhanced inverter performance and system performance are achieved by the addition of a ‘Direct Current’ drive compressor, resulting in up to 10% more efficient than standard 'AC' (Alternating Current) Systems. The variable speed compressor (inverter) enables the system to rapidly reach the desired room temperature setting. Once the desired room temperature has been achieved the compressor rotation peed is reduced, saving up to 30% in energy usage (when compared to standard fixed speed systems).


A bigger flap on the indoor unit delivers air quickly to every corner of the room and the powerful, sweeping air flow eliminates dead zones and improves the cooling and heating effect. The trapezoidal fan blades cut the air diagonally to minimise air resistance and the conical blade fan ensures a high airflow. With this diagonal air blow, less friction is caused, which reduces noise and improves efficiency. The fan diameter has been increased from the conventional 90mm to 100mm. Includes deodorising and anti-bacterial Wasabi filters as standard.

Volt Free control of the air conditioning system option, used to turn the unit on/off remotely after receiving a signal such as key-card, door or window switch, specifically useful in hotel rooms to prevent unnecessary use. Accessory SPX WDC3 is required.



Product Key Feature's:


SCOP A++ 4.6 and SEER A++ 7.6 R32 Inverter Heat Pump

Infra-red controller

Slim construction 218mm

Pipe runs up to 20 meters

Low noise 19dBA on low

Cold draft prevention on heat pump start up

Fault diagnosis

Auto re-start after power interruption

PRE-CHARGED WITH REFRIGERANT for up to 20 metres pipe length

Light weight noise absorbing outdoor unit

Volt Free control

5 Years Warranty




Technical Specifications:



OUTDOOR UNITS



Outdoor Unit Model

rac-18wpd

rac-25wpd

rac-35wpd

rac-42wpd

rac-50wpd

Noise level cooling (sound pressure)(3)

dB(A)

44

46

48

49

49

Noise level heating (sound pressure)(3)

dB(A)

45

47

49

50

50

Noise level (sound power)(1)

dB(A)

58

60

61

63

63

Air fl  w (Cooling / Heating)

m3/h

1860 / 1620

1860 / 1620

1920 / 1620

2160 / 2160

2160 / 2160

Dimensions (H x W x D)

mm

548x750 x288

548x750 x288

548×750×288

600x792x299

600x792x299

Weight

kg

32.5

32.5

32.5

39.0

39.0



Piping diameter (Liquid / Gas)

Inch

1/4 - 3/8

1/4 - 3/8

1/4 - 3/8

1/4" / 1/2"

1/4" / 1/2"

mm

6.35 - 9.52

6.35 - 9.52

6.35 - 9.52

6.35 - 12.7

6.35 - 12.7

Minimum Piping Length

m

3.0

3.0

3.0

3.0

3.0

Maximum Piping Length / Height Difference

m

20 / 10

20 / 10

20 / 10

20 / 10

20 / 10

Current Quantity of Refrigerant

kg

0.87

0.87

0.87

1.05

1.05

Chargeless / Additional Refrigerant Charge

m / g/m

20 / -

20 / -

20 / -

20 / -

20 / -

Power supply



230V / 1Ph / 50Hz

230V / 1Ph / 50Hz

230V / 1Ph / 50Hz

230V / 1Ph / 50Hz

230V / 1Ph / 50Hz

Recommended fuse size

A

15

15

15

25

25

Starting current

A

2.9

3.9

5.1

6.0

7.1

Running current (cooling/heating)

A

1.09-4.39  /  1.09-4.22

1.09-5.61  /  1.09-6.52

1.09-6.35  /  1.09-7.39

1.30-7.39  /  2.17-8.70

1.30-8.70 / 2.17-11.96

Interconnecting Cables

No.

1.50x 3+EARTH

1.50x 3+EARTH

1.50x 3+EARTH

1.50x 3+EARTH

1.50x 3+EARTH

Working Range (cooling/heating)

°C

-10°C~+43°C  /  -15°C~+21°C

Refrigerant / GWP



R32  / 675

R32  / 675

R32  / 675

R32  / 675

R32  / 675

Compressor type



Rotary

Rotary

Rotary

Rotary

Twin Rotary

System Price

(Ł)

616

653

767

1,022

1,445



INDOOR UNITS



Indoor Unit Model

rak-18rpd

rak-25rpd

rak-35rpd

rak-42rpd

rak-50rpd

Nominal Cooling Capacity (min - max)

kW

2.00 (0.90 - 2.50)

2.50 (0.90 - 3.10)

3.50 (0.90 - 4.00)

4.20 (1.70 - 5.00)

5.00 (1.90 - 5.20)

Sensible Cooling Capacity

kW

1.9

2.1

2.4

3.3

3.4

UK Cooling Capacity (sensible)

kW

1.9 (1.7)

2.4 (2.0)

3.3 (2.5)

4.0 (3.2)

4.6 (3.2)

Nominal Heating Capacity (min - max)

kW

2.50 (0.90 - 3.20)

3.40 (0.90 - 4.40)

4.20 (0.90 - 5.00)

5.40 (1.70- 6.00)

6.00 (2.20- 7.30)

Nominal cooling power input (min - max)

kW

0.42 (0.25 - 1.01)

0.55 (0.25 - 1.29)

0.94 (0.25 - 1.46)

1.12 (0.30 - 1.70)

1.56 (0.50 - 2.10)

Nominal heating power input (min - max)

kW

0.52 (0.25 - 0.97)

0.73 (0.25 - 1.50)

1.00 (0.25 - 1.70)

1.32 (0.50 - 2.10)

1.66 (0.50 - 2.75)

Seasonal Effi         SEER(4)

Energy Effi         Class Annual Energy Consumption



kWh/yr

8.5

8.5

7.8

7.5

7.2

A+++

A+++

A++

A++

A++

82

103

157

196

238

Seasonal Effi

SCOP(4) (Average Climate)

Energy Effi         Class Annual Energy Consumption



kWh/yr

4.9

4.9

4.9

4.6

4.4

A++

A++

A++

A++

A+

287

305

311

522

549

Nominal Load Ef

fi         EER / COP(5)

Energy Class (Cool/Heat)



4.77 / 4.82

4.55 / 4.64

3.72 / 4.20

3.75 / 4.10

3.21 / 3.61

A / A

A / A

A / A

A / A

A / A

Noise level cooling (sound pressure) (SL / L / M / H)(2)

dB(A)

21 / 24 / 33 / 37

22 / 24 / 33 / 40

25 / 26 / 36 / 43

25 / 28 / 39 / 46

25 / 28 / 39 / 46

Noise level heating (sound pressure) (SL / L / M / H)(2)

dB(A)

19 / 22 / 33 / 38

20 / 23 / 34 / 41

26 / 27 / 36 / 44

27 / 31 / 39 / 46

27 / 31 / 39 / 46

Noise level (sound power)(1)

dB(A)

51

54

57

60

60

Air flow cooling mode (SL / L / M / H)

m3/h

312 / 350 / 400 / 440

333 / 370 / 430 / 510

353 / 420 / 485 / 680

353 / 410 / 540 / 720

353 / 410 / 540 / 750

Air flow heating mode (SL / L / M / H)

m3/h

312 / 350 / 420 / 480

333 / 400 / 500 / 570

363 / 480 / 570 / 780

380 / 500 / 610 /800

380 / 500 / 610 / 820

Dehumidification

l/h

1.2

1.4

1.6

1.8

2.0

Dimensions (H x W x D)

mm

280 x 780 x 230

280 x 780 x 230

280 x 780 x 230

280 x 780 x 230

280 x 780 x 230

Weight

kg

8.5

8.5

8.5

8.5

8.5

Power supply



230V / 1Ph / 50Hz

Drain diameter (ext)



φ16mm

φ16mm

φ16mm

φ16mm

φ16mm



Remote Control

Std

Infra Red (RAR-6N1)

Infra Red (RAR-6N1)

Infra Red (RAR-6N1)

Infra Red (RAR-6N1)

Infra Red (RAR-6N1)

Opt

SPX-WKT3 / SPX-RCDB

SPX-WKT3 / SPX-RCDB

SPX-WKT3 / SPX-RCDB

SPX-WKT3 / SPX-RCDB

SPX-WKT3 / SPX-RCDB









PDF Data:





RAK Summit PDF
