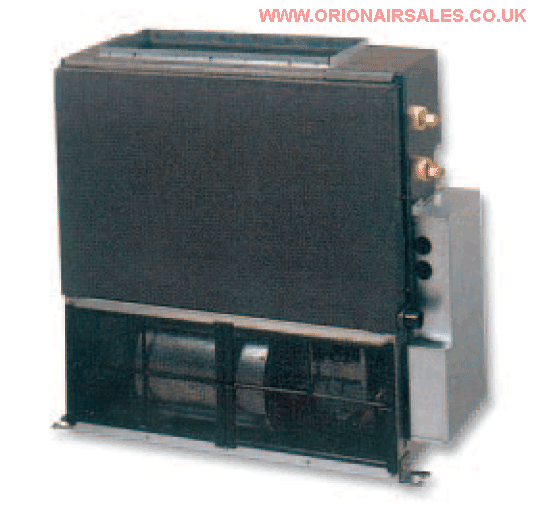

Fujitsu - ACY50-UI - Slim line Concealed Duct air conditioning

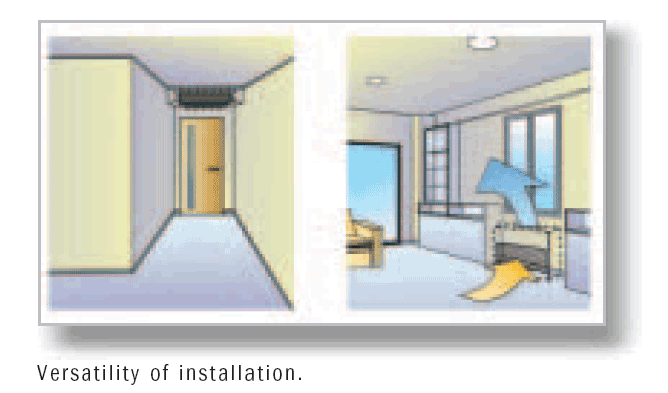

Perfect for areas where you want concealed air conditioning. Units can be seated upright for floor based applications or mounted above a ceiling.
Fujitsu have developed the DC inverter system with a circuit V-Ram. The result is a reduced sized DC compressor which, in addition to providing greater performance, allows the appliance to heat up efficiently even when the outside temperature is very low. Unlike conventional systems, the Fujitsu inverter technology adapts the speed of the compressor to the needs of each moment, consuming only the energy required. This allows temperature swings to be reduced drastically and maintains a margin of between ±0,5ΊC, providing greater room temperature stability and comfort.


versitile ducted unit. Can be in roof void of floor mounted.


Ultra compact units

These low-profile models (21.7 cm in models of up to
5,400 W and 27 cm in models of up to 14,000 W) are also
extremely compact as the junction box is built into the
side of the unit.

More convenient maintenance

To facilitate the maintenance of the units as
much as possible, the structure of the base
has been divided into two pieces (front and
rear). In addition, the position of the fan has
also been developed in 2 pieces (one higher
and one lower).

Standard inlet and filters

The Fujitsu ducted models are equipped with standard return
filters and a rectangular inlet.


Product Key Feature's

• High CoP, up to record 4.19
• Infra-red controller
• Slim construction 217mm
• Pipe runs up to 25 metres
• Noise – 49dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 10 metres pipe length

• With “Power Diffuser” effect for greater comfort.
• Automatic cleaning function.
• Cleaner and healthier air with ion generator incorporated in indoor unit.
• Low ambient tested to -15 Deg/C in heating.
• M a x i m u m  i n s t a l l a t i o n  v e r s a t i l i t y
• R e m o t e  c o n t r o l  w i t h  t h e r m o  s e n s o r
• Light weight noise absorbing outdoor unit.



ASY Wall Mounted ACY50-UI
Power source 1 ph 240V
Type  Inverter  rotary DC
COOLING (nominal) max. kW
5.2 / 17000 BTU
HEATING (nominal) max. kW
6.2 / 18000 BTU
UK Cooling (max) kW  n/a
UK Sensible Cooling kW  n/a
E.E.R.  n/a
Energy label in heating  C
Energy label in cooling  C
C.o.P  3.26
ECA - Yes


INDOOR UNIT

Exterior dimensions (mm) 595 x 953 x 217
Net weight kg 25
Sound Pressure Level* dB(A) (F/M/S/Q) 34//31/28/










OUTDOOR UNIT

Exterior dimensions (mm) 650 x 830 x 320
Net weight kg 54
Power Source Rating MCB A 15A
Refrigerant max piping length m 25
Pre-charged with 10m refrigerant R410a
Sound Pressure Level* dB(A) - 49
Pipe sizes - 1/4" / 1/2"
