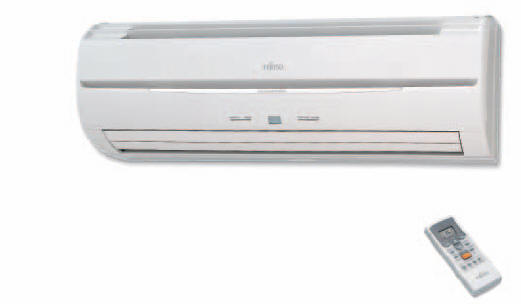

Always on the cutting edge of innovation. Included in the indoor unit is
Fujitsu's polyphenol antibacterial filter (an element extracted from apples)
which absorbs dust, spores and other harmful micro organisms.
Fujitsu air conditioning units are
designed for residential & commercial applications and have been a trusted
manufacturer for many years. With a large range of units available Fujitsu
units are ideal for any application. Fujitsu air conditioning equipment
comes with 3 years warranty on parts.
Double slat system:
To blend the air in the room with the conditioned air more quickly in order to
avoid stratification, the mobility of the two slats gives a longer dart of air.
Sleep and Nice Morning Timer (NTM): Fujitsu equips its
apparatus with these two functions that provide greater comfort. - SLEEP:
This nocturnal disconnection program adjusts the microprocessor to the time of
year to condition the room in an optimum manner before the user wakes up. - NMT:
This function calculates the time required for the room to reach the desired
temperature at the time set, and turns on the unit when required
HSP outdoor units (High Strength Polyester) lower kw models:
The units made from this material are smaller and weigh less whilst
increasing their resistor to the outside. Among the many qualities of HSP is the
noise reduction as a result of the absorption of vibrations and the
incorporation of unique details, such as the protection of the connection
valves.
|
MODEL |
|
ASYA24 |
ASYA30 |
ASY24 |
ASY30 |
|
Cooling capacity |
kcal/h |
|
5850 (2320-6880) |
6880 (2320-7400) |
6106 (1720-6880) |
6880 (1720-7740) |
|
W |
|
6800 (2700-8000) |
8000 (2700-8600) |
7100 (2000-8000) |
8000 (2000-9000) |
|
Heating capacity |
kcal/h |
|
6020 (2320-7740) |
7395 (2320-8600) |
6966 (1720-8600) |
7740 (1720-9460) |
|
W |
|
7000 (2700-9000) |
8500 (2700-10000) |
8100 (2000-10000) |
9000 (2000-11000) |
|
Energy efficiency ratio (E.E.R.) Cooling |
|
|
3,21 |
2,63 |
3,21 |
3,01 |
|
Heating |
|
|
3,61 |
3,02 |
3,62 |
3,41 |
|
Power supply |
V/nº/Hz |
|
230/1/50 |
230/1/50 |
230/1/50 |
230/1/50 |
|
Power consumption (Cooling/Heating) |
kW |
|
2,12/1,94 |
3,04/2,81 |
2,21/2,24 |
2,66/2,64 |
|
Starting current |
A |
|
10 |
10 |
9,8 |
11,7 |
|
Running current (Cooling/Heating) |
A |
|
9,3/8,5 |
13,3/12,3 |
9,7/9,8 |
11,7/11,6 |
|
Electrical wiring |
|
|
(O.U.) 2 x 4 + T |
(O.U.) 2 x 4 + T |
(O.U.) 2 x 4 + T |
(O.U.) 2 x 4 + T |
|
Electrical connection |
|
|
3 x 2,5 + T |
3 x 2,5 + T |
3 x 2,5 + T |
3 x 2,5 + T |
|
Noise level indoor unit High |
dB (A) |
|
45 |
45 |
47 |
47 |
|
Medium |
dB (A) |
|
41 |
41 |
41 |
41 |
|
Low |
dB (A) |
|
36 |
36 |
36 |
36 |
|
SuperQuiet |
dB (A) |
|
32 |
32 |
32 |
32 |
|
Noise level outdoor unit |
dB (A) |
|
53 |
53 |
52 |
53 |
|
Dimensions indoor unit Width |
mm |
|
1120 |
1120 |
998 |
998 |
|
Depth |
mm |
|
220 |
220 |
228 |
228 |
|
Hight |
mm |
|
320 |
320 |
320 |
320 |
|
Dimensions outdoor unit Width |
mm |
|
900 |
900 |
790 |
900 |
|
Depth |
mm |
|
350 |
350 |
315 |
330 |
|
Hight |
mm |
|
900 |
900 |
578 |
830 |
|
Net weight (Indoor U./Outdoor U.) |
kg |
|
16/78 |
16/78 |
16/44 |
16/62 |
|
Pipe size |
Inch. |
|
3/8"-5/8" |
3/8"-5/8" |
1/4"-5/8" |
3/8"-5/8" |
|
Piping lenght max. (Total/Height) |
m |
|
30/20 |
30/20 |
30/20 |
50/30 |
|
Refrigerant |
type |
|
R410A |
R410A |
R410A |
R410A |
|
Refrigerant charge |
m |
|
10 |
10 |
15 |
20 |
|
Operating range Cooling |
ºC |
|
0~43 |
0~43 |
-10~43 |
-10~43 |
|
Heating |
ºC |
|
-10~24 |
-10~24 |
-15~24 |
15~24 |
 |
